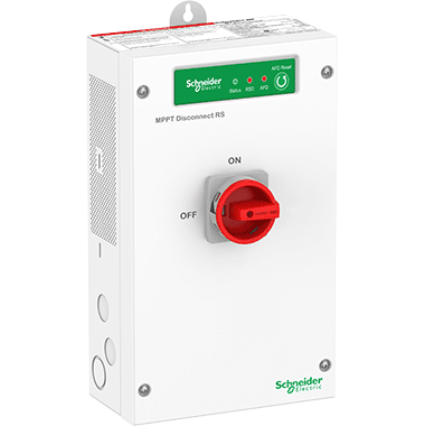

Schneider Electric MPPT Disconnect RS

The MPPT Disconnect RS is an accessory for the Conext™ MPPT 60 150, MPPT 80 600, and MPPT 100 600 charge controllers. It provides a disconnect for the photovoltaic (PV) circuits, an integrated Rapid Shutdown transmitter, and arc fault detection for enhanced safety. With powerline communication, the MPPT Disconnect RS is tested and certified with Tigo® TS4-F range of Fire Safety receivers for NEC Rapid Shutdown compliance.

A Rapid Shutdown transmitter, arc fault detection, and PV disconnect for use with MPPT 60 150, MPPT 80 600, and MPPT 100 600 charge controllers.

Features

The MPPT Disconnect RS provides simplified NEC 2017 Compliance

Integrated Rapid Shutdown transmitter using power line communication (PLC)
Tested and PVRSS certified with Tigo® TS4-A-F or TS4-A-2F Fire Safety receivers
Arc fault detection certified to UL 1699B
Compatible with Conext™ MPPT 100 600, MPPT 80 600, and MPPT 60 150 charge controllers

Integrated PV Disconnect

2 leg disconnect, compliant with NEC 2017
LOTO capability
2 input channels with up to 2 strings per channel

Flexible Installation

Multiple configurations with Conext™ MPPT charge controllers
Single Rapid Shutdown Initiator Switch can be used with multiple MPPT Disconnect RS for larger systems
Side or bottom cable entry
Mount on either side of the Conext™ MPPT charge controllers
