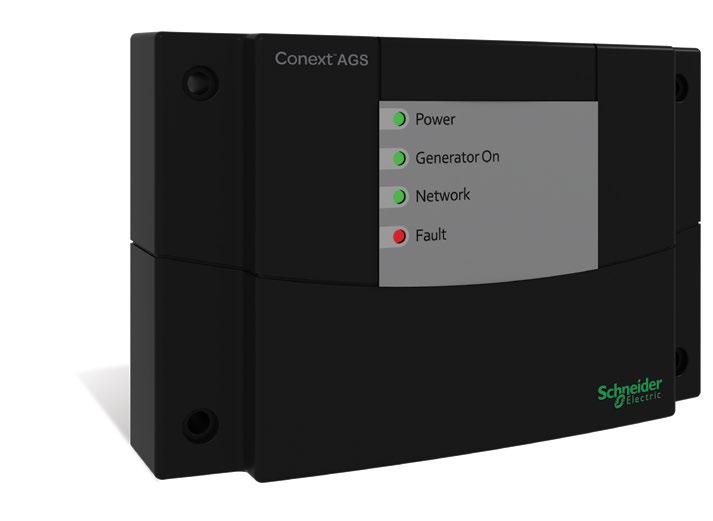

Schneider Electric XW Auto Generator Start

RNW8651060

Hover over image to zoom

  • RNW8651060
Schneider Electric
Discontinued
SKU: ALG-030-01183
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 0.50 LBS

 Product Description

Schneider Electric Modbus Converter - RNWC8651060

Schneider Electric, XW-AGS Generator Start Controller, RNW8651060

The Conext Automatic Generator Start (AGS) can automatically activate or stop a generator in response to changing power requirements. An excellent addition to an off-grid or backup power system, the AGS seamlessly connects to the XanbusTM network and shares status information with all other devices on the network. It can monitor a set of system user-programmable parameters such as battery voltage, state of charge or grid power and can activate the generator in response to any changes. The AGS can also be configured remotely using the Conext System Control Panel (SCP) or Conext ComBox to engage a generator, and can assist an inverter/charger when output power demands are high.

Features

  • True Bankability and Higher ROI - Warranty from a trusted partner with 178 years of experience. World leader in industrial power drives, UPS and electrical distribution. Strong service infrastructure worldwide to support your global needs. Integrate with an inverter/charger to maximize system power performance.
  • Reliable and Flexible - Tested and qualified for harsh environmental conditions (HALT reliability testing). Works with multiple Xanbus devices - Conext XW/XW+, SW, MPPT 60-150, MPPT 80-600, SCP and ComBox. User programmable trigger settings to meet specific application needs: Battery volatge, SOC, Exercise time, Quiet time, Inverter/Charge AC power loads. Supports manual start and stop operation modes.
  • Easy to Service and Install - Access and troubleshoot AGS device events using the Conext ComBox or SCP. Easily upgrade new firmware to the AGS using the ComBox. Wall Mount. RJ45 connections for Xanbus network cables.



General Information
Manufacturer: Schneider Electric
Product Line:
 Conext
Model ID:
 RNW8651060
Certifications and Safety Ratings: ul.jpg csa.jpg ce.gif



Mechanical Data

Technology: Auto Generator Start
Dimensions:
 3.80 x 5.70 x 1.50 inches
Weight: 0.50 lbs
Mounting Options: Wall-Mount
IP Rating/Location: IP20, Indoor Only
Network Protocol: Xanbus
Connectors: 2 x RJ45 Ports
Safety: CSA 107.1-01, UL 458 4th Ed including the Marine Supplement
EMC: FCC Part 15B Class B, Industry Canada ICES-0003 Class B,C-Tick
Included Parts: One Network Terminator, One CAT5 Cable (2.1 m), One Mounting Plate, Four #6 Screws



Electrical Data

Nominal Input Network Voltage: 15 VDC
Maximum Operating Current:
 200 mA @ Nominal Input Network Voltage
Relay Contact Voltage Rating: 12 VDC, 30 VDC Max
Maximum Relay Contact Current: 15 ADC
Nominal 12/24 V Thermostat Input Voltage: 12 VDC / 24 VDC = On
Minimum 12/24 V Thermostat Input Voltage: 9.5 VDC
Maximum 12/24 V Thermostat Input Voltage: 30 VDC
Typical 12/24 V Thermostat Input Current: 14.6 mA @ 12 V
Nominal 12/24 V Generator Running B+ Voltage: 12 VDC / 24 VDC = On
Minimum 12/24 V Generator Running B+ Voltage: 9.5 VDC
Maximum 12/24 V Generator Running B+ Voltage: 30 VDC
Typical 12/24 Generator Running B+ Voltage: 14.6 mA @ 12 V



Datasheets

Document Type
logo-adobe-pdf-2.jpgSchneider Electric RNW8651060 Specs
 Specifications
logo-adobe-pdf-2.jpgSchneider Electric RNW8651060 Owners Manual Owners Manual
logo-adobe-pdf-2.jpgSchneider Electric RNW8651060 Installation Guide Installation Guide
Warranty 5 Year Limited Warranty
logo-adobe-pdf-2.jpgSchneider Electric RNW8651060 Warranty Warranty
