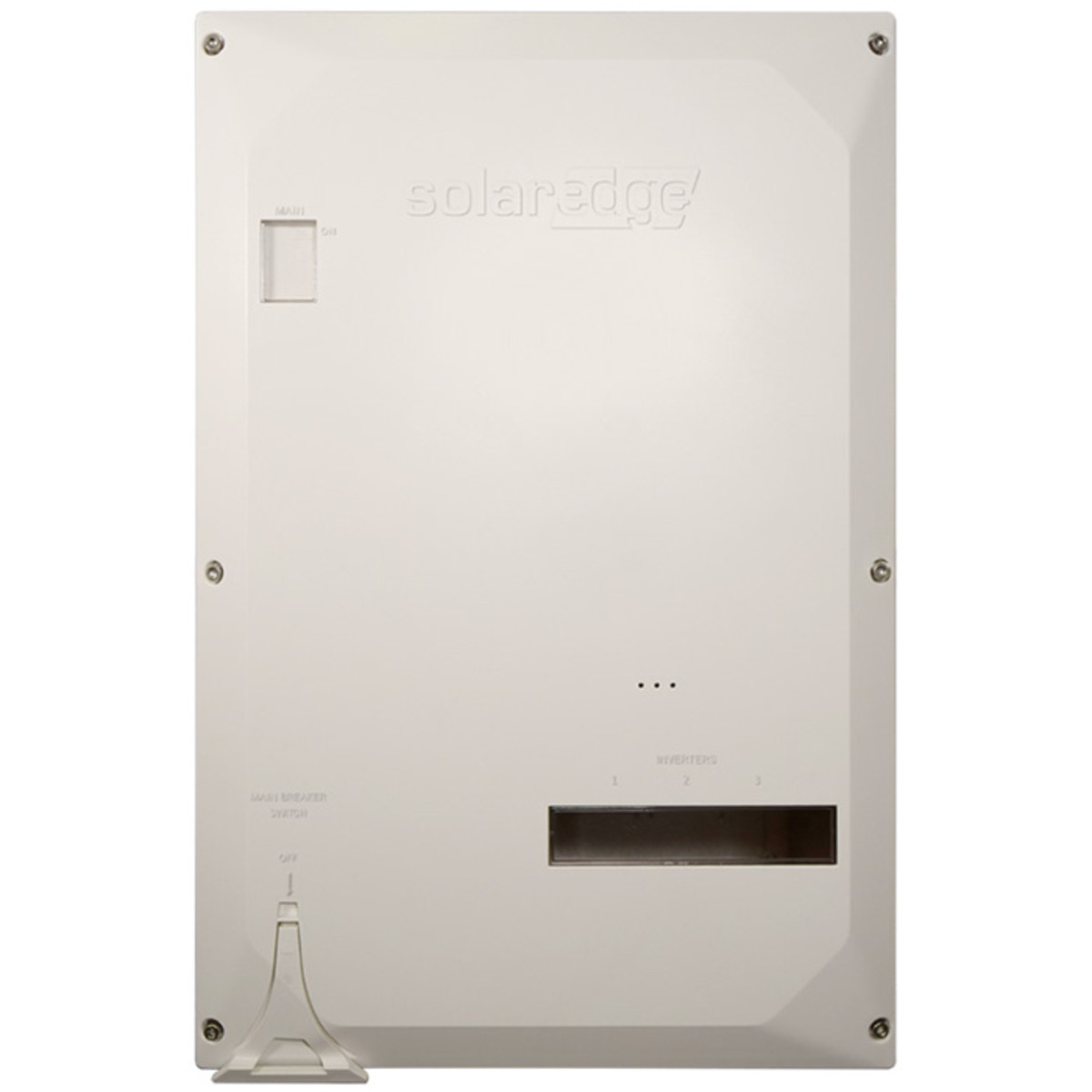

SolarEdge BI-NUSGN-01 Sub-Panel Import/Export Meter

BI-NUSGN-01

Hover over image to zoom

  • BI-NUSGN-01
SolarEdge
$1,539.99
SKU: BI-NUSGN-01
Condition: New
Weight: 73.00 LBS
Shipping: Calculated at checkout
  • Buy 2 - 4 and get 1% off
  • Buy 5 or above and get 2% off

 Product Description

SolarEdge Backup Interface - BI-NUSGN-01

SolarEdge, Backup Interface, with 5kW ATX, Import/Export Meter, 200A MCB rated for Service Side Connection, BI-NUSGN-01

The SolarEdge Backup Interface is designed to work with the SolarEdge energy management inverters (StorEdge / Energy Hub) to automatically provide backup power to home loads during a grid outage. Homes with the SolarEdge Backup interface + EnergyHub have full flexibility to select which loads to back up, and the ability to add scale-able storage capacity.

Features

  • Highlights - Automatically provides backup power to home loads in the event of grid interruption. Full flexibility in which loads to backup the entire home or selected loads. Scalable solution to support higher power and higher capacity. Built-in Auto Tranformer and Energy Meter for easier and faster installation. Seemless integration with the StorEdge inverter to manage and monitor both PV generation and energy storage. Generator connection support.



General Information
Manufacturer: SolarEdge
Product Line:
 Backup Interface
Model ID:
 BI-NUSGN-01
Certifications and Safety Ratings: ul.jpg iec.jpg  fcc.jpg rohs.jpg



Mechanical Data

Technology: Backup Interface
Dimensions:
 20.59 x 13.88 x 8.62 Inches
Weight: 73 lbs
Supported Inverters: StorEdge Single Phase Inverter, StorEdge Single Phase Inverter with HD Wave Technology
Cooling: Fans (User Replaceable)
Installation Type: For Main Lug (Sub Panel) Only



Electrical Data

Input From Grid
AC Current Input: 200 Amps
AC Output Voltage (Nominal): 240 VAC
AC Output Voltage Range: 211-264 VAC
AC Frequency (Nominal): 60 Hz
AC Frequency Range: 59.3 - 60.5 Hz
Microgrid Interconnection Device Rated Current: 200 Amps
Service Side AC Main Circuit Breaker Rated Current: N/A
Service Side AC Main Circuit Breaker Interrupt Current: N/A
Grid Disconnection Switchover Time: <100 ms
Output to Main Distribution Panel
Max. AC Current Output: 200 Amps
AC L-L Output Voltage (Nominal): 240 VAC
AC L-L Output Range: 211-264 VAC
AC Frequency (Nominal): 60 Hz
AC Frequency Range: 59.3-60.5 Hz
Max. Inverters AC Current Output in Backup Operation: 78 Amps
Imbalance Compensation in Backup Operation: 5000 Volts
AC L-N Output Voltage in Backup (Nominal): 120 Volts
AC L-N Output Voltage Range in Backup: 105-132 Volts
AC Frequency Range in Backup: 55-65 Hz
Input from Inverter
Number of Inverter Inputs: 3
Rated AC Power: 7,600 Watts
Max. Continuous Input @240V: 32 Amps
Rated AC Power in Continuous Backup Operation: 6,100 Watts
Max. Continuous Input Current in Backup Operation: 26 Amps
Peak AC Power (<10 sec) in Backup Operation: 7,000 Watts
Peak AC Current (<10 sec) in Backup Operation: 30 Amps
Inverter Input AC Circuit Breaker: 40 Amps
Upgradability: Up to 3 x 40A CB
Generator
Max. Rated AC Power: 15,000 Watts
Max. Continuous Input Current: 63 ADC
Dry Contact Switch Voltage Rating: 250VAC/30VDC
Dry Contact Switch Current Rating: 5 Amps
2-Wire Start Switch: Yes



Datasheets

Document Type
logo-adobe-pdf-2.jpgSolarEdge StorEdge Backup Interface Specs Specifications
Warranty 25 Year Limited Product Warranty
logo-adobe-pdf-2.jpgSolarEdge StorEdge Warranty Warranty
