SunGoldPower 370W Mono Black PERC Solar Panel

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
SunGoldPower
$1,129.40
SKU: SG-370WMB
Condition: New
Weight: 41.80 LBS
Shipping: Calculated at checkout

 Product Description

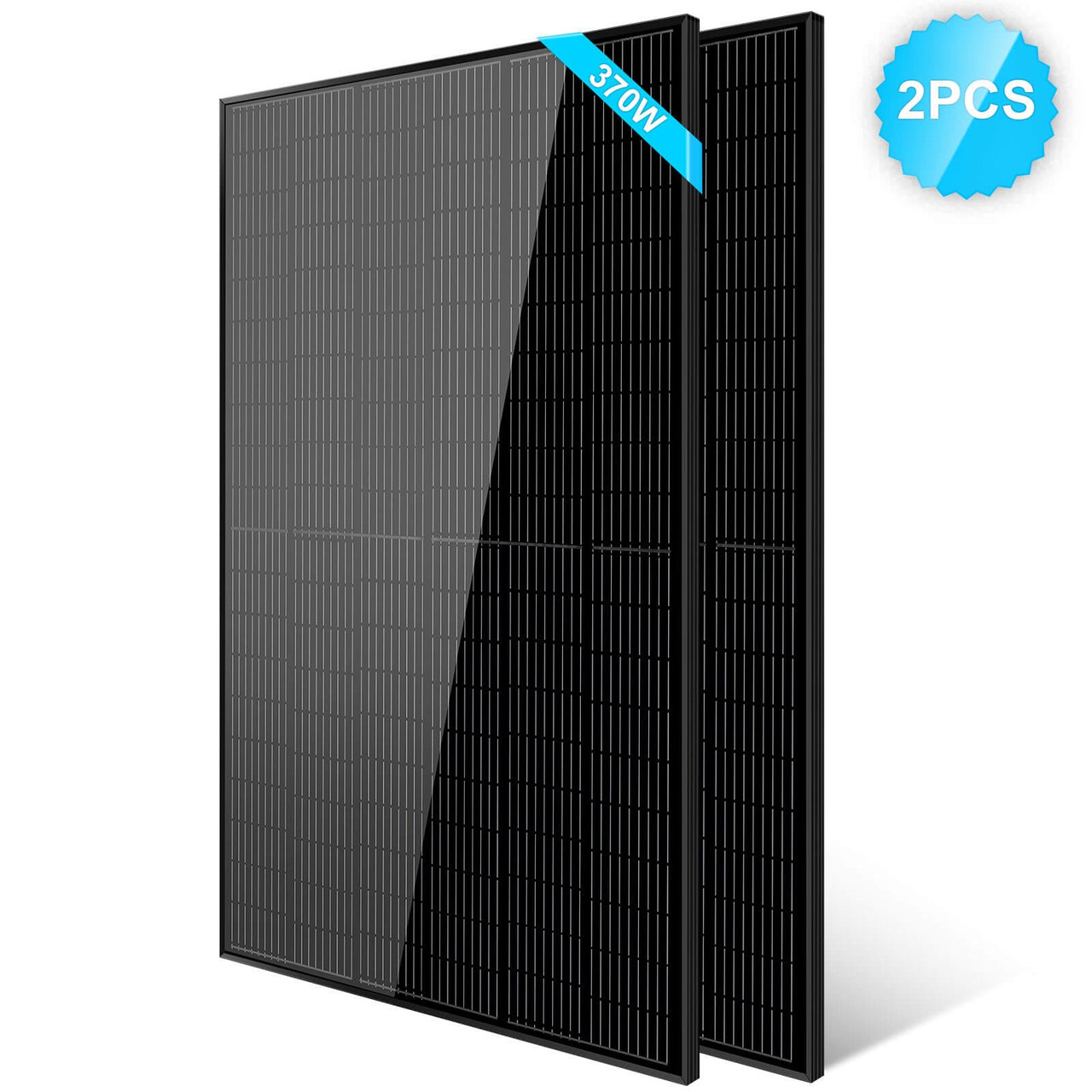

SunGoldPower 370W Mono Black PERC Solar Panel - SG-370WMB

Off-grid & On-grid Solution & Hybrid System

This high efficiency PERC solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.

01-02.jpg__PID:5ba6e83b-f782-4e3e-8927-b97269775785



FEATURES

High Efficiency Module : This module comes with Mono PERC Half-Cut Technology and has a module efficiency up to 20.3%. SunGoldPower 370W panels provide more output per surface area than most tranditional panels.

 High Tolerance: 370W solar panels are made with half-cell technology,it improves the power output and performance of solar modules because they offer a higher shade tolerance due to unique wiring system and number of cells increases.

Widely Use : 370W solar panel is ideal for off-grid,on grid or hybrid solar system, can be an ideal facility used in RV, Tiny House, marine, household power supply, commercial building etc. It helps to save power consumption and save you much more in the long future.

Warranty : the solar panels come with 10 years workmanship warranty and 25-year linear performance warranty, TUV certificated,UL certificated is coming later.

 High efficiency

High efficiency monocrystalline PERC module, 182 mono half-cells with an all-black design.

02-02.jpg__PID:3e8927b9-7269-4757-85eb-9b956284baa3



Water Proof

The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

03-02.jpg__PID:e83bf782-7e3e-4927-b972-69775785eb9b



Snow and Wind Protection

Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .

04-02.jpg__PID:3bf7827e-3e89-47b9-b269-775785eb9b95



Home Solar System

With balanced power, improved stability, and economical electricity costs.

05-02.jpg__PID:f7827e3e-8927-4972-a977-5785eb9b9562



Wide Application

With balanced power, improved stability, and economical electricity costs.



General Information
Manufacturer: SunGoldPower
Product Line: Solar Panel
Model ID:
SG-370WMB
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications

Model Type SG-370WMB
Peak Power (Pmax) 370W
Production tolerance  ±3%
Maximum Power Current (Imp) 11.15 A
Maximum Power Voltage (Vmp) 33.2V
Short Circuit Current (Isc) 11.81A
Open Circuit Voltage (Voc) 40.17V
Maximum System Voltage 1500V
Wind Resistance 2400Pa
Output Cables  12 AWG (1ft per cable)
Number of Cells  120(6*20)
Cell Type Mono182mm
Certifications CE TUV
Product Weight 41.8lbs
Product Dimension 63.23*44.65*1.38inch (1606*1134*35mm)
Package Weight 93.5lbs(2PCS)
Package Dimension 66.02*47.64*3.54inch(2PCS)
Performance 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty
Material and workmanship warranty 10 year material and workmanship warranty



Datasheets

Document Type

logo-adobe-pdf-2.jpgDownload 370W Mono Black Solar Panel User Manual

Sheet



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.




SunGoldPower - SunGoldPower 370W Mono Black PERC Solar Panel
Price: 1129.4
Condition: new



 Warranty Information

The solar panels come with 10 years workmanship warranty and 25-year linear performance warranty, TUV certificated, UL certificated is coming later.
