SunGoldPower 500W Mono Black PERC Solar Panel

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
SunGoldPower
$1,452.90
SKU: SG-500WM
Condition: New
Weight: 56.20 LBS
Shipping: Calculated at checkout

 Product Description

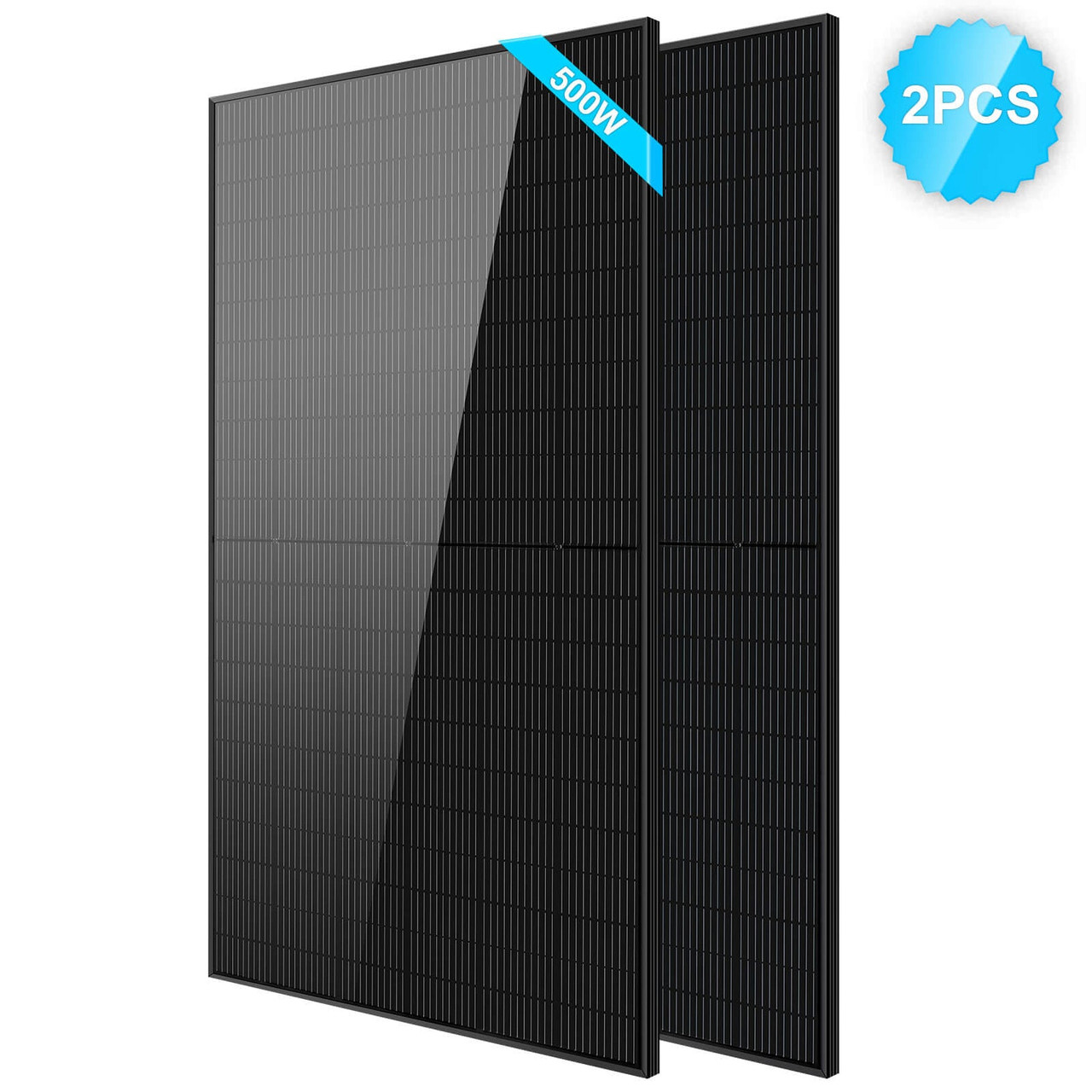

SunGoldPower 500W Mono Black PERC Solar Panel - SG-500WM



Off-grid & On-grid Solution & Hybrid System

This high efficiency PERC Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.

A+01.jpg__PID:7d867da0-d26e-4dfc-8dab-3d74430f496c

FEATURES

High Efficiency Module : This module comes with Mono PERC Half-Cut Technology and has a module efficiency up to 21.05%. SunGoldPower 500W panels provide more output per surface area than most tranditional panels.

 High Tolerance: 500W solar panels are made with half-cell technology,it improves the power output and performance of solar modules because they offer a higher shade tolerance due to unique wiring system and number of cells increases.

Widely Use : 500W solar panel is ideal for off-grid,on grid or hybrid solar system,can be an ideal facility used in RV, Tiny House, marine, household power supply, commercial building etc. It helps to save power consumption and save you much more in the long future.

Warranty : the solar panels come with 10 years workmanship warranty and 25-year linear performance warranty,TUV certificated,UL certificated is coming later.

 High efficiency

High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.

A+02.jpg__PID:867da0d2-6ead-4c4d-ab3d-74430f496c40



Water Proof

The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

A+03.jpg__PID:a7056136-5b9d-467f-9883-7d867da0d26e



Snow and Wind Protection

Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .

A+04.jpg__PID:0561365b-9d16-4f98-837d-867da0d26ead



Home Solar System

With balanced power, improved stability, and economical electricity costs.

A+06.jpg__PID:98837d86-7da0-426e-adfc-4dab3d74430f
A+07.jpg__PID:5b9d167f-9883-4d86-bda0-d26eadfc4dab
A+05.jpg__PID:167f9883-7d86-4da0-926e-adfc4dab3d74



General Information
Manufacturer: SunGoldPower
Product Line: Solar Panel
Model ID:
SG-500WM
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications

Model Type SG-500WM
Peak Power (Pmax) 500W
Production tolerance ±3%
Maximum Power Current (Imp) 13.30A
Maximum Power Voltage (Vmp) 37.60V
Short Circuit Current (Isc) 14.09A
Open Circuit Voltage (Voc) 44.36V
Maximum System Voltage 1500V
Wind Resistance 2400Pa
Output Cables  12 AWG (1ft per cable)
Number of Cells  132(6*22)
Cell Type PERC Mono182*91mm
Certifications CE TUV
Product Weight 56.2lbs
Product Dimension 82.44*44.65*1.38inch
Package Weight 124.6lbs(2PCS)
Package Dimension 85.4*47.6*3.5inch(2PCS)
Performance 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty
Material and workmanship warranty 25 years Linear Product Workmanship Warranty and 10 years workmanship warranty.



Datasheets

Document Type

logo-adobe-pdf-2.jpgDownload 500W Mono Black Solar Panel User Manual

Sheet



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.




SunGoldPower - SunGoldPower 500W Mono Black PERC Solar Panel
Price: 1452.9
Condition: new



 Warranty Information

The solar panels come with 10 years workmanship warranty and 25-year linear performance warranty, TUV certificated, UL certificated is coming later.
