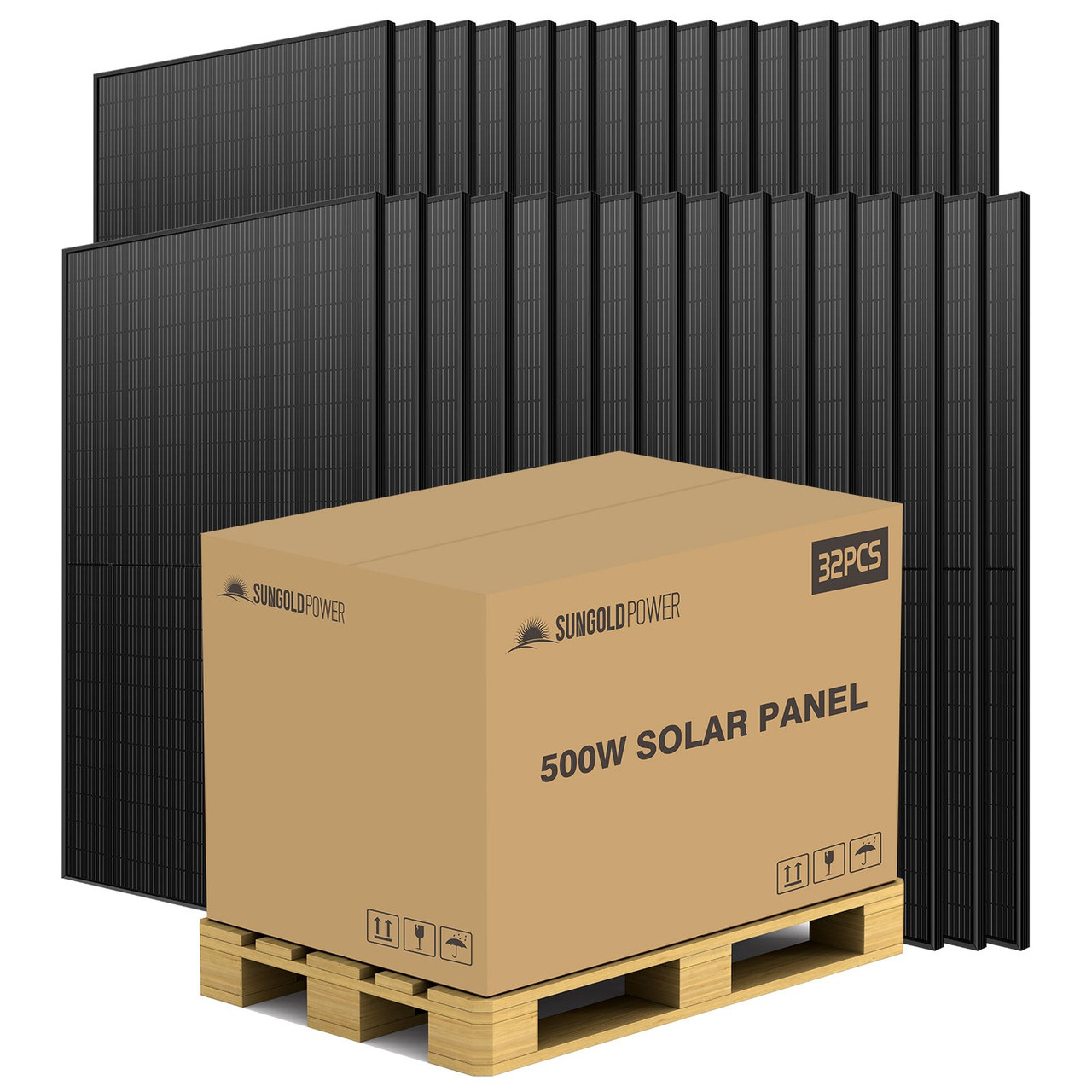

SunGoldPower 500W Mono Black Perc Solar Panel Full Pallet (32 Panels) - SG-500WM |
Off-grid & On-grid Solution & Hybrid SystemThis high efficiency PERC Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house. High efficiencyHigh efficiency monocrystalline PERC module, 182mono half-cells with an all-black design. Water ProofThe solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep). Snow and Wind ProtectionPassed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure . Home Solar SystemWith balanced power, improved stability, and economical electricity costs. FEATURES★High Efficiency Module : This module comes with Mono PERC Half-Cut Technology and has a module efficiency up to 21.05%. SunGoldPower 500W panels provide more output per surface area than most tranditional panels. ★ High Tolerance: 500W solar panels are made with half-cell technology,it improves the power output and performance of solar modules because they offer a higher shade tolerance due to unique wiring system and number of cells increases. ★Widely Use : 500W solar panel is ideal for off-grid,on grid or hybrid solar system,can be an ideal facility used in RV, Tiny House, marine, household power supply, commercial building etc. It helps to save power consumption and save you much more in the long future. ★Warranty : the solar panels come with 10 years workmanship warranty and 25-year linear performance warranty,TUV certificated,UL certificated is coming later. |
General Information | |
Manufacturer: | SunGoldPower |
Product Line: | Panel |
Model ID: |
SG-500WM |
Certifications and Safety Ratings: |
Specifications |
|
Model Type | SG-500WM |
---|---|
Peak Power (Pmax) | 500W |
Production tolerance | ±3% |
Maximum Power Current (Imp) | 13.30A |
Maximum Power Voltage (Vmp) | 37.60V |
Short Circuit Current (Isc) | 14.09A |
Open Circuit Voltage (Voc) | 44.36V |
Maximum System Voltage | 1500V |
Wind Resistance | 2400Pa |
Output Cables | 12 AWG (1ft per cable) |
Number of Cells | 132(6*22) |
Cell Type | PERC Mono182*91mm |
Certifications | CE TUV |
Product Weight | 56.2lbs |
Product Dimension | 82.44*44.65*1.38inch |
Package Weight | 124.6lbs(2PCS) |
Package Dimension | 85.4*47.6*3.5inch(2PCS) |
Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
Material and workmanship warranty | 25 years Linear Product Workmanship Warranty and 10 years workmanship warranty. |
Datasheets |
|
Document | Type |
Manual |
Terms & Conditions |
|
Shipping: | Shipping Policy |
Returns: | Returns Policy |
Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
The solar panels come with 10 years workmanship warranty and 25-year linear performance warranty, TUV certificated, UL certificated is coming later.
