SunGoldPower 560 Watt Bifacial PERC Solar Panel

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
SunGoldPower
$1,688.20
SKU: SG-560WBG
Condition: New
Weight: 67.90 LBS
Shipping: Calculated at checkout

 Product Description

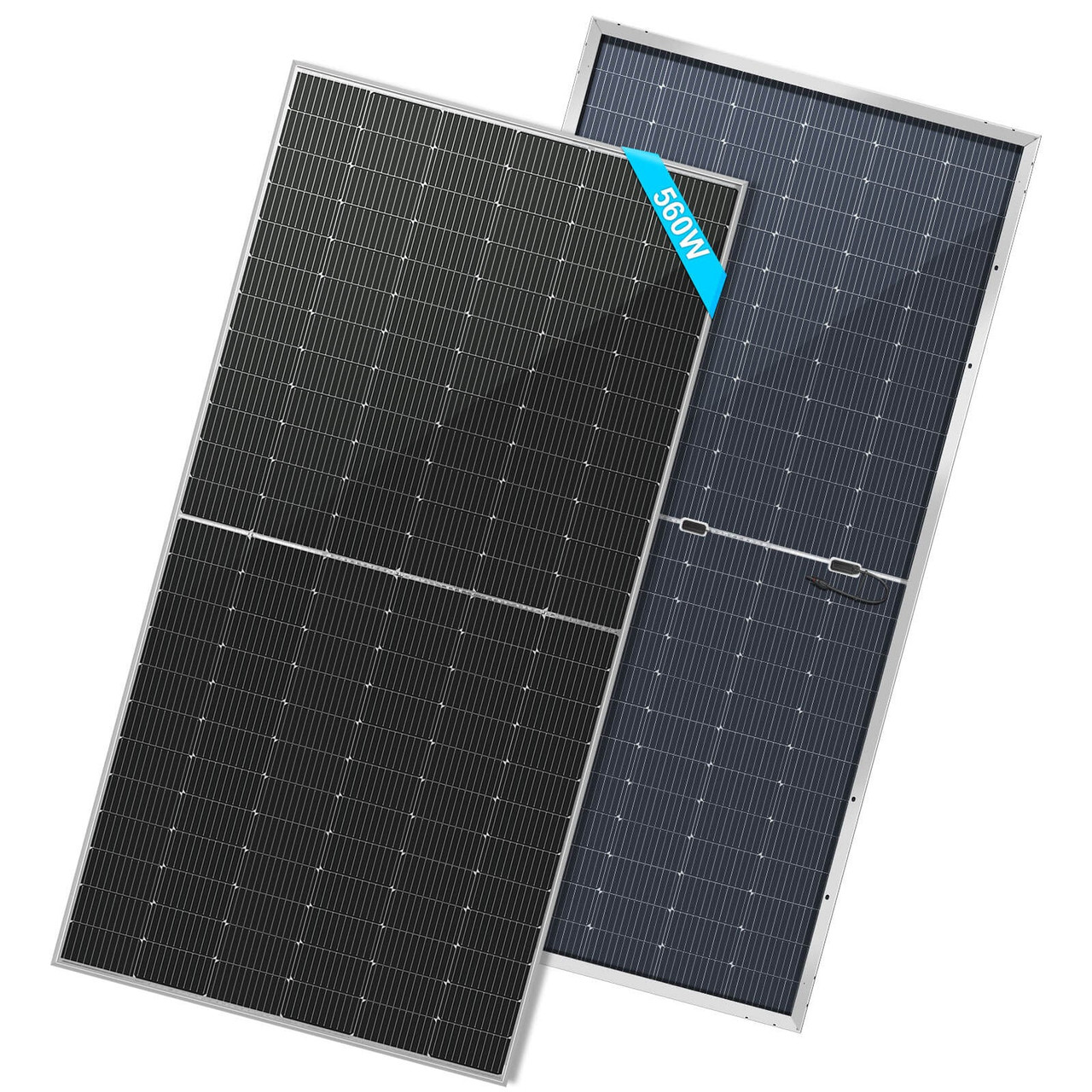

SunGoldPower 560 Watt Bifacial PERC Solar Panel - SG-560WBG
A+01.jpg__PID:0aee98a6-03e0-479a-b4c3-70261a99538d



Sungoldpower Bifacial solar panels are solar panels that can capture sunlight on both their front and back, it can generate up to 30% more energy than conventional solar panels, Bifacial solar panels are ideal for installations where the backside of the solar array is exposed and can capture reflected light, including ground-mount systems, solar carports and canopies.

FEATURES

★Bifacial monocrystalline PERC solar panel can generate more energy up to 30%

★Bifacial modules offer higher durability even rough climatic heat /cold/snow/wind

★The space requirement for installation is less because of high efficiency

★It can be set up at any angle. no need to analyse or calculate the right mounting and tilt angle

25 Years Performance warranty and 30% residential Clean Energy Credit

A+02.jpg__PID:ea55e818-5235-4fcd-80b7-ec26e6f85f9c
A+03.jpg__PID:067b86e6-57f7-41df-93a0-f7abbe8b0c13


Improved PV Module Performance under PartialShading Conditions

The panel features an innovative design of PERC, half-cut cells, bypass diodes and 11-busbar technology to maximize energy output even under partial shading.

A+05.jpg__PID:86e657f7-d1df-43a0-b7ab-be8b0c133860
A+04.jpg__PID:7b86e657-f7d1-4f93-a0f7-abbe8b0c1338
A+06.jpg__PID:63fe51c7-5b14-4c5f-895d-8e1d91a2fba6
A+07.jpg__PID:57f7d1df-93a0-47ab-be8b-0c133860fd12



General Information
Manufacturer: SunGoldPower
Product Line: Solar Panel
Model ID:
SG-560WBG
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications

Model Type SG-560WBG
Peak Power (Pmax) 560W
Production tolerance ±3%
Maximum Power Current (Imp) 13.3A
Maximum Power Voltage (Vmp) 42.1V
Short Circuit Current (Isc) 14.09A
Open Circuit Voltage (Voc) 50.09V
Maximum System Voltage 1500V
Wind Resistance 2400Pa
Output Cables  12 AWG (1ft per cable)
Number of Cells  144(6x 24),60 cells in series
Cell Type PERC Monocrystalline (7.2x 3.6 in)
Certifications CE TUV
Product Weight 67.9lbs
Product Dimension 89.8*44.7*1.4inch
Package Weight 128.7lbs(2PCS)
Package Dimension 92.5*47.6*3.1inch(2PCS)
Performance 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty
Material and workmanship warranty 10 year material and workmanship warranty



Datasheets

Document Type

logo-adobe-pdf-2.jpgDownload 560 Watt Bifacial Solar Panel User Manual

Sheet
