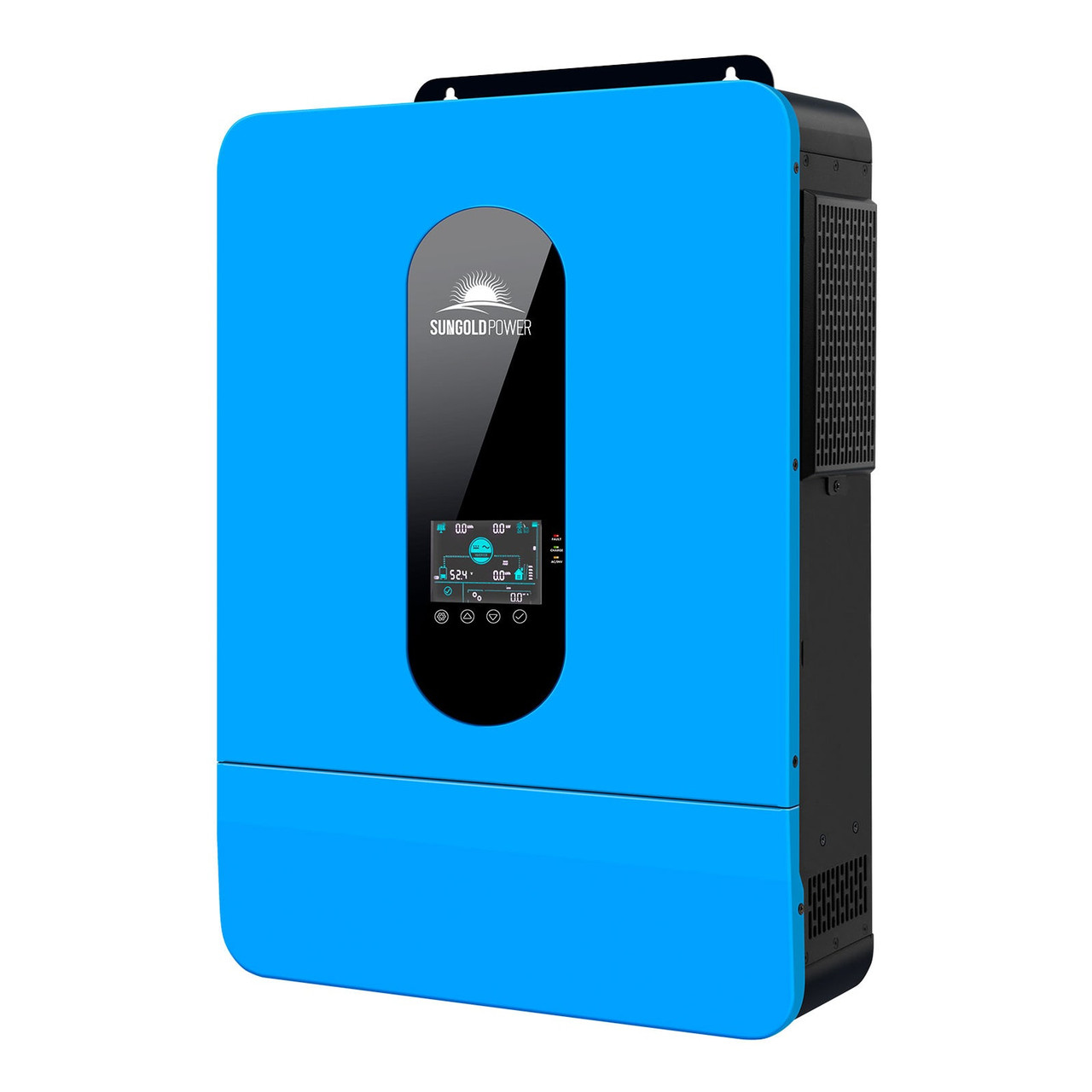

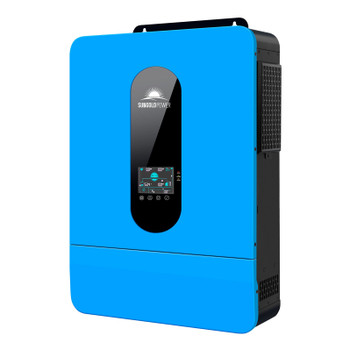

SunGoldPower 6.5KW 48V Split Phase Solar Inverter SPH6548P

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
SunGoldPower
MSRP: $1,350.00
$1,235.20 (You save $114.80)
SKU: SPH6548P
Condition: New
Weight: 42.00 LBS
Shipping: Calculated at checkout

 Product Description

SunGoldPower 6.5KW 48V Split Phase Solar Inverter SPH6548P - SPH6548P

SPH6548-A+01.jpg__PID:c9f9f0f6-1740-4e46-805f-aa1c11ad29db
SPH6548P+100P-.jpg__PID:9130516b-210d-460e-a995-406520165037
SPH6548P+200T-.jpg__PID:30516b21-0d76-4ee9-9540-6520165037c2
SPH6548-A+02.jpg__PID:24df69d2-b397-4b67-9dc2-4e85bc630be2
2_76ecbeec-4102-4dfd-acce-50c64ace5927__PID:e8b3073a-d39c-4a4c-bc9d-c4783fcff8ca
10kw-4__PID:073ad39c-ba4c-4c9d-8478-3fcff8ca9aa2
SPH6548A+06-1.jpg__PID:0aba50d0-024a-4bd1-b1f0-34c7ee350052
SPH6548A+04.jpg__PID:50d0024a-cbd1-41f0-b4c7-ee35005201ea
10kw-06_da6a49ee-a380-47ad-b104-8cb720fcec70__PID:d39cba4c-fc9d-4478-bfcf-f8ca9aa221ff
10KW-09.jpg__PID:7f787083-e115-4133-bae8-0d5f1a07ef40
SPH6548A+10.jpg__PID:aa1c11ad-29db-428d-8249-993043380f7d



FEATURES

★ All in one unit: 6.5KW Pure Sine Wave Solar Inverter Combined with Max 140A battery charging, 2 MPPT Solar controller inbuilt, Max. Voltage of Open Circuit: 550VDC, Split phase (120V/240V) or Single phase (120v) output. Wifi module is included, which allows the user to view the operating status and parameters of the inverter via the mobile phone APP.

★ Parallel Kit: Parallel 6 units up to 39KW power output, you will get 120V single phase / 120V/240V Split Phase or 208V 3-Phase Support (more than 3 unit in parallel), increases the inverter power and surge capacity.

★ Stable AC output and Smart Protection: Rated Output Power: 6500W, Max Peak Power: 13,000VA, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection, Over-load protection and so on.

★ Four charging / Output modes: Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes:  Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.

★ Time-slot charging/discharging function: The SPH series 6500W inverter is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.

★ Battery type: 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode to work with all battery types, and supports battery-free. When the lithium battery is dormant, the mains power and photovoltaics can activate the lithium battery. The 48v split phase inverter supports CAN and RS485 communication with SunGoldPower batteries.



General Information
Manufacturer: SunGoldPower
Product Line: Inverter
Model ID:
SPH6548P
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications


SPH6548A+03-1.jpg__PID:01a25abb-71eb-40b0-8269-35013953e853
SPH6548A+03-2.jpg__PID:10505193-40fb-4602-a576-fc09d438629e



Datasheets

Document Type

logo-adobe-pdf-2.jpgManual

Manual



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.




SunGoldPower - SunGoldPower 6.5KW 48V Split Phase Solar Inverter SPH6548P
Price: 1235.2
Condition: new



 Warranty Information

2-years warranty

 Product Reviews

This product hasn't received any reviews yet. Be the first to review this product!
