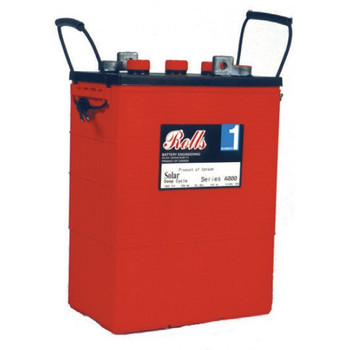

Surrette Rolls S-480 6VDC 375Ah Flooded Battery

S-480

Hover over image to zoom

  • S-480
Surrette Rolls
Discontinued
SKU: ALG-040-02107Z
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 81.00 LBS
  • Buy 4 - 7 and get 2% off
  • Buy 8 or above and get 5% off

 Product Description

Surrette Rolls 6V Flooded Battery - S-480

Surrette Rolls, 375 Ah @20hr 6V Flooded Deep Cycle Battery, S-480

Looking to learn more about Rolls Battery Engineering?  It starts with the exclusive manufacturer – Surrette Battery Company Ltd.  Established in 1935, Surrette Battery Company Ltd. is proud to be one of North America’s leading lead-acid battery producers and Canada’s only remaining independent battery manufacturer.  Located in Springhill, Nova Scotia, we produce a wide range of Rolls-branded premium deep cycle batteries for use in Renewable Energy, Marine, Motive Power and Railroad applications.  Rolls flooded and sealed AGM & GEL VRLA products are internationally recognized for their dependability, outstanding quality and industry-leading manufacturer warranties.

Features

  • Highlights - Industrial deep cycle flooded battery. Dual container, heavy duty plate grid, rated for 2100 cycles at 80% DOD. Individual cells are bolted together so they can be independently removed.



General Information
Manufacturer: Surrette Rolls
Product Line:
 4000 Series
Model ID:
 S-480
Certifications and Safety Ratings: ul.jpg



Mechanical Data

Technology: Deep Cycle Flooded Battery
Dimensions:
 12.50 x 7.15 x 16.75 inches
Weight: 81.00 lbs
Weight (Wet): 113.00 lbs
Container:
 High Density Polypropylene
Cover: High Density Polypropylene
Terminals: Flag M
Handles: Rope
Plate Height: 11.55 Inches
Plate Width: 5.63 Inches
Thickness (Positive): 0.17 Inches
Thickness (Negative): 0.12 Inches
Cells: 15 Plates/Cell; 3 Cell
Separator Thickness: 0.61 Inches
Glass Mat Insulation: 0.02 Inches
Electrolyte Reserve Above Plates: 2.25 Inches
Cold Crank Amps (CCA): -17.8°C; 1151
Marine Crank Amps (MCA): 0°C; 1440
Reserve Capacity (RC @25A): 814 Minutes



Electrical Data

Capacity 546Ah

100 Hour Rate: 1.28 @ Specific Gravity; 486 @ Capacity/Amp Hr; 4.86 @ Current/Amps
72 Hour Rate:
 1.28 @ Specific Gravity; 459 @ Capacity/Amp Hr; 6.38 @ Current/Amps
50 Hour Rate: 1.28 @ Specific Gravity; 438 @ Capacity/Amp Hr; 8.76 @ Current/Amps
24 Hour Rate: 1.28 @ Specific Gravity; 386 @ Capacity/Amp Hr; 16.09 @ Current/Amps
20 Hour Rate: 1.28 @ Specific Gravity; 375 @ Capacity/Amp Hr; 18.75 @ Current/Amps
15 Hour Rate: 1.28 @ Specific Gravity; 352 @ Capacity/Amp Hr; 23.45 @ Current/Amps
12 Hour Rate:

1.28 @ Specific Gravity; 334 @ Capacity/Amp Hr; 27.81 @ Current/Amps
10 Hour Rate: 1.28 @ Specific Gravity; 319 @ Capacity/Amp Hr; 31.88 @ Current/Amps
8 Hour Rate: 1.28 @ Specific Gravity; 300 @ Capacity/Amp Hr; 37.50 @ Current/Amps
6 Hour Rate: 1.28 @ Specific Gravity; 278 @ Capacity/Amp Hr; 46.25 @ Current/Amps
5 Hour Rate: 1.28 @ Specific Gravity; 263 @ Capacity/Amp Hr; 52.50 @ Current/Amps
4 Hour Rate: 1.28 @ Specific Gravity; 244 @ Capacity/Amp Hr; 60.94 @ Current/Amps
3 Hour Rate: 1.28 @ Specific Gravity; 221 @ Capacity/Amp Hr; 73.75 @ Current/Amps
2 Hour Rate: 1.28 @ Specific Gravity; 191 @ Capacity/Amp Hr; 95.63 @ Current/Amps
1 Hour Rate: 1.28 @ Specific Gravity; 135 @ Capacity/Amp Hr; 135.00 @ Current/Amps



Datasheets

Document Type
logo-adobe-pdf-2.jpgSurrette Battery S-480 Specs Specifications
logo-adobe-pdf-2.jpgSurrette Battery S-480 Manual Users Manual
Warranty See Warranty Statement
logo-adobe-pdf-2.jpgSurrette Battery S-480 Warranty Warranty
