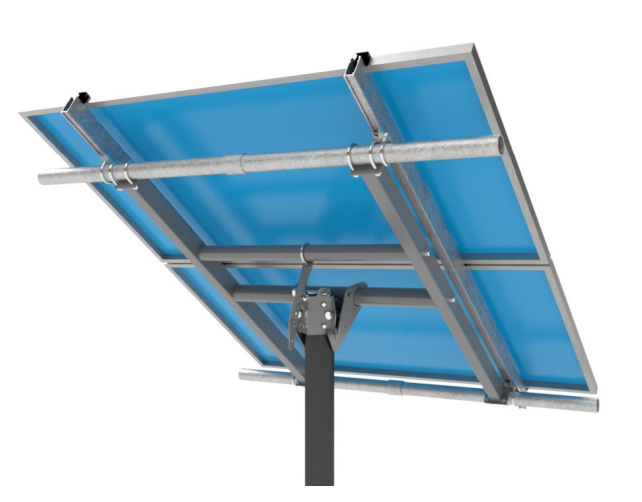

Tamarack Solar 2 Module Pole Top Mount TTP-A-2-93

 Mount two modules with a total area of 50 square feet or less on a 4-inch Schedule 40 or 80 pole

Features:

• Fits any module up to 45.5 inches wide with frames 30 to 40 mm deep*
• Mounts on user-supplied 4-inch schedule-40 or schedule-80 steel pipe
• TTP-A-2-93 requires 2 sections of schedule-40 pipe. Purchase locally or order Pipe-Kit-SD4
• No complex sizing documents or need to send module data sheets when ordering
• Heavy-Duty Steel structure and Tamarack 3.1 aluminum module mounting rails
• 10° to 60° tilt angle
• UPS Shippable
• Total shipping weight is 143 pounds in 4 boxes
• Engineered for up to 160 mph wind speed and 200 psf snow load.
• Site specific engineering for permit packages is available for an extra fee.

PIPE KIT-SD4 includes two 2-inch Sch-40, 4 foot pipes. Ship weight 38 lbs.

*Deeper frames can be used by adding 50/50+ mounting clamps (Item# 89907, sold separately)
