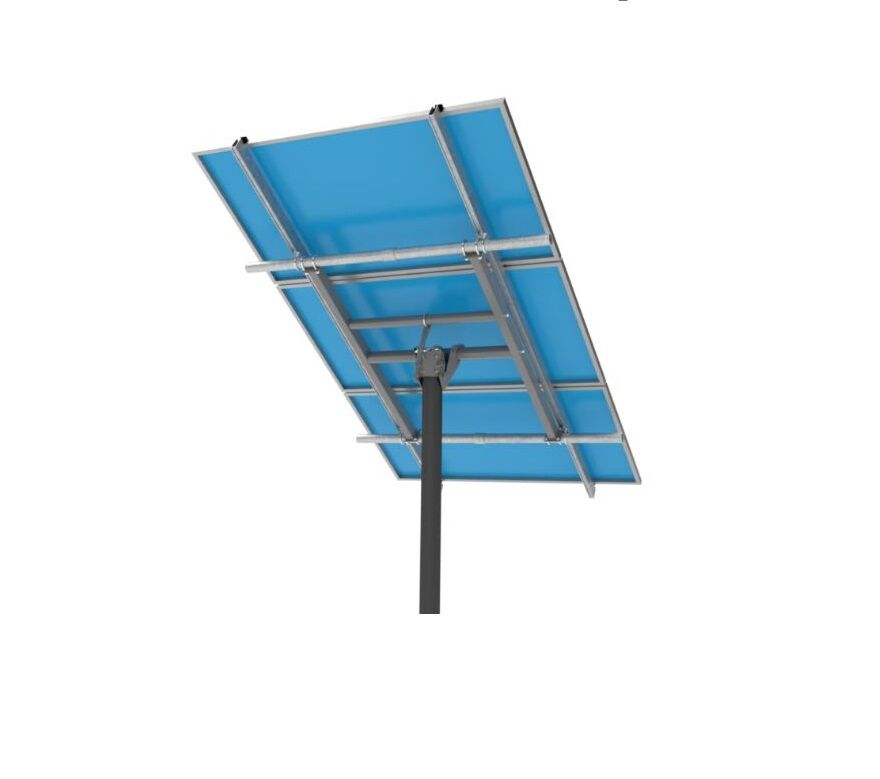

Tamarack Solar 3 Module Pole Top Mount TTP-A-3

 Mount three modules with a total area of 75 square feet or less on a 4-inch Schedule 40 or 80 pole

Features:

• Fits any module up to 43 inches wide with frames 30 to 40 mm deep*
• Mounts on user-supplied 4-inch schedule-40 or schedule-80 steel pipe
• TTP-A-3 requires 2 sections of schedule-40 pipe. Purchase locally or order Pipe Kit-SD5
• No complex sizing documents or need to send module data sheets when ordering
• Heavy-Duty Steel structure and Tamarack 3.1 aluminum module mounting rails
• 10° to 60° tilt angle
• UPS Shippable
• Total shipping weight is 145 pounds in 3 boxes
• Engineered for 160 mph wind speed and 200 psf snow load.
• Site specific engineering for permit packages is available for an extra fee.

*Deeper frames can be used by adding 50/50+ mounting clamp sold separately 89907

PIPE KIT-SD5 For use with modules up to 78-inches long. Includes two 2-inch Sch-40 5 foot pipes. Shp wt. 54 lbs.
