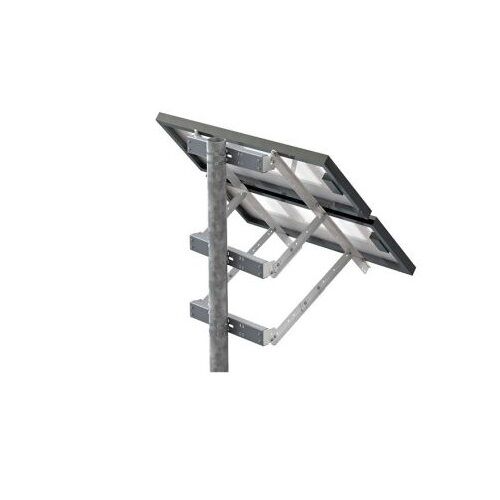

Tamarack Solar UNI-SP/03X Side of Pole Mount

Tamarack, Side Pole Mount - 90-Inch Rails - Module hole spacing 29.2"- 41.2"

The Side of Pole Mount is a simple and universal pole mounting solution for photovoltaic modules. The UNI-SP/03X model is designed for mounting two PV modules in landscape orientation, with a maximum combined module width of 89-inches. These mounts can be installed on a 4-inch Schedule 40 pipe with provided band clamps, or a 4-inch to 6-1/2-inch OD pole with user-supplied U-bolts, lag bolts (flat surfaces), or on a 25G ROHN tower frame. User-adjustable angle settings from 40 to 66
degrees.

Features

• Manufactured using heavy-duty corrosion-resistant aluminum
• Can adapt to larger poles, Rohn 25-series towers, or flat surfaces w/ additional fasteners (see install manual for details)

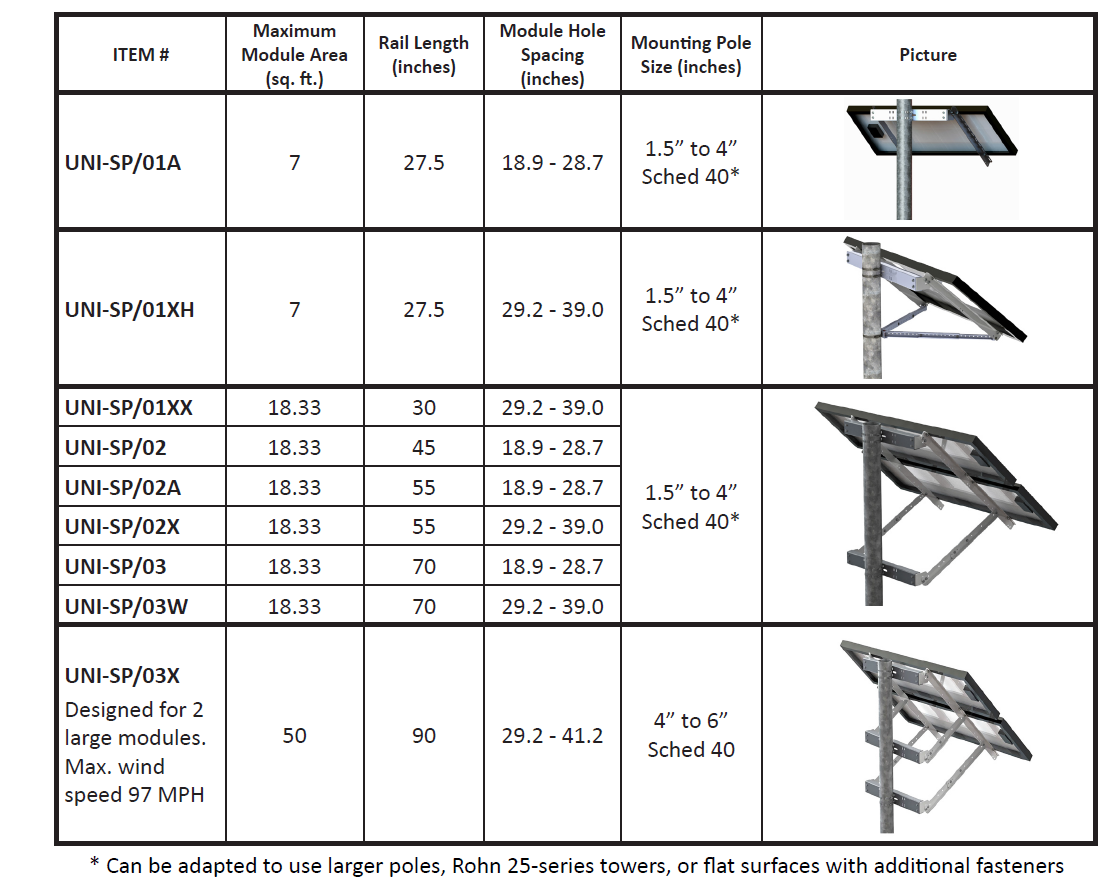

• Landscape: mount 1 or 2 modules, with a total width less than rail length in table below
• Portrait: mount 1 module if rail length is greater than distance from one end of the long-side of module frame to a mounting hole on the other end of that frame
• Fits pole diameters of 1.5-in to 4-in, Sched 40 pipe (UNI-SP/03X fits 4-in or 6-in, Sched 40 pipe)
